The MG J-type is a sports car that was produced by MG from 1932 to 1934. This 2-door sports car used an updated version of the overhead camshaft, crossflow engine, used in the 1928 Morris Minor and Wolseley10 and previously fitted in the MG M-type Midget of 1929 to 1932, driving the rear wheels through a four-speed non-synchromesh gearbox. The chassis was from the D-Type with suspension by half-elliptic springs and Hartford friction shock absorbers all round with rigid front and rear axles. The car had a wheelbase of 86 inches (2184 mm) and a track of 42 inches (1067 mm). Most cars were open two-seaters, but a closed salonette version of the J1 was also made, and some chassis were supplied to external coachbuilders. The open cars can be distinguished from the M type by having cut-away tops to the doors.
The J2, a road-going two-seater, was the commonest car in the range. Early models had cycle wings, which were replaced in 1933 by the full-length type typical of all sports MGs until the 1950s TF. The top speed of a standard car was 65 mph (105 km/h),[1] but a specially prepared one tested by The Autocar magazine reached 82 mph (132 km/h). The car cost £199.
The most serious of the J2's technical failings is that has only a two-bearing crankshaft, which can break if over-revved. The overhead camshaft is driven by a vertical shaft through bevel gears, which also forms the armature of the dynamo. Thus any oil leak from the cambox seal goes into the dynamo brushgear, presenting a fire hazard.
Rather than hydraulic brakes the car has Bowden cables to each drum. Although requiring no more pedal force than any other non-power-assisted drum brake if they are well maintained, the drums themselves are small, and even in period it was a common modification to replace them with larger drums from later models.
This particular car was beautifully restored some 20 years ago and has belonged to its present owner for at least 15 years. The 2K paint has developed a range of blistering on the wing panels and some rust under the paint over the last few years and it is my real pleasure to be trusted with the opportunity to correct the problems.

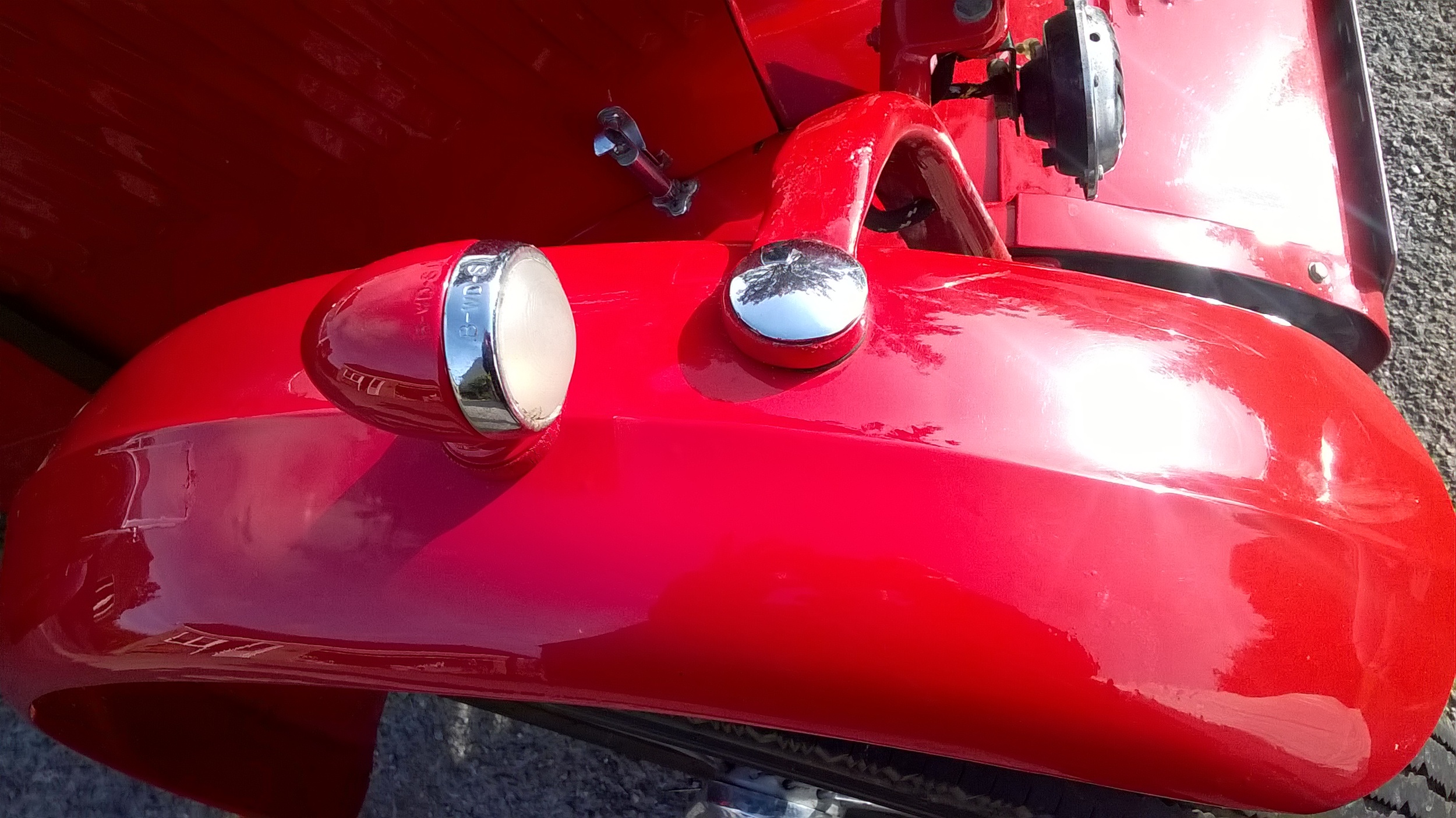

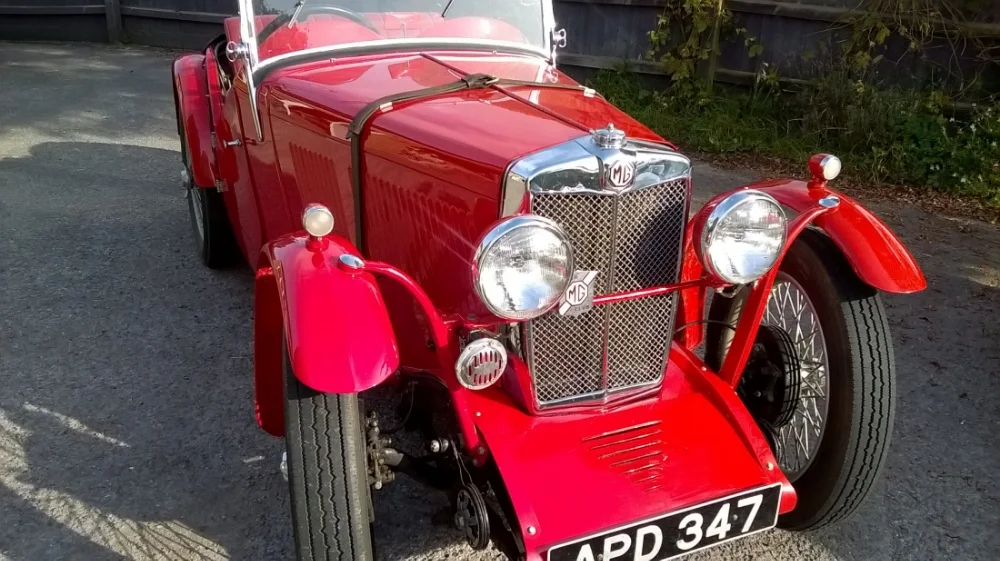

Some pictures of the finished car. It still need polishing after the paint has cured properly.
